Structural Drawings in Minutes
Generate Physically Valid Designs from Floor Plans
Logo Suffolk
Logo Simpson
Logo BWE
Logo Mighty
Logo NVIDIA
How does it work?
Icon 4

Generative AI Assisted Structural Layout

Generate multiple layout options along physical stability, economic viability, ease of construction, and sustainability objectives via the creativity of generative AI.

Icon 5

Thorough Structural Analysis

Validate generated designs through finite element analysis and produce detailed performance reports as calculation sheets.

Icon 5

Design Review & Editing

Allow engineers to review and modify AI-generated designs before outputting the formal construction documents.

Icon 5

Building Codes Compliance

Integrate requirements from local building codes such as IBC, IRC, and NBCC to ensure compliance.

Icon 5

Materials Optimality

Design using locally available materials sourced from industry-leading suppliers, and optimize the specification table for shop drawing.

Do More with Less
Structural Design No Longer Time-Consuming and Manual
10x

Faster Structural Design

What usually takes a team of 5 engineers for two weeks to design can now be done within minutes!

40%

Less Error in Drawing

Structural CoPilot balances the creativity of Generative AI with engineering accuracy and optimizes design towards performance, cost and sustainability goals.

10%

Material Savings

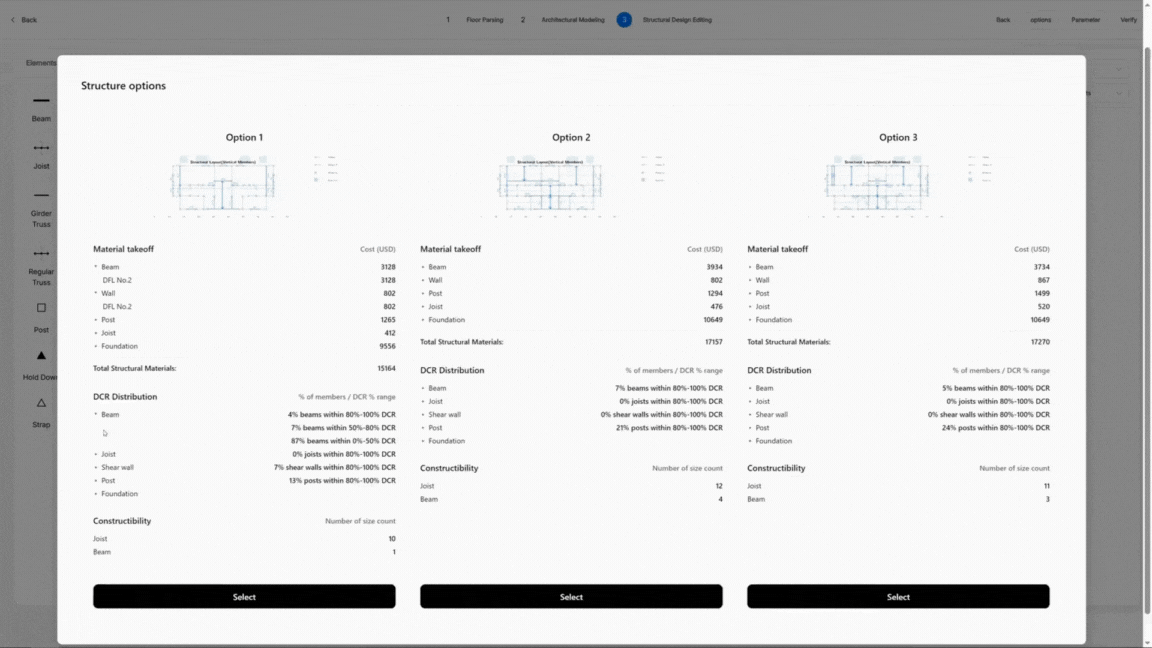

Structural CoPilot searches among 1,000s layout options to stress test flexibility and presents multiple design options to allow structural engineers reduce material costs without sacrificing physical stability of the structure.

Win!

More Bids, Higher Prices

By using our products, our customers are able to consistently demonstrate quality designs to their clients and win more deals at higher prices without expanding their workforce!

LOVE from Customers
Customer 2 Logo
"We help our developer clients reduce 15% materials in a project by exploring the options Genia’s Structural CoPilot generates."
- Dr. Mehdi E., P.Eng.
Customer 3 Logo
"By collaborating with Genia’s structural engineers, I’m able to produce permit-ready structural drawings in just a few hours."
- Aaron C., PE
Customer 3 Logo
"Genia’s solution helps us stress test the impact to the existing structure in a retrofitting project where we’re introducing new ventilation equipments on the rooftop, letting us explore the optimal mechanical design."
- Dr. Murat M., PE
See More Case Studies
Pricing
Main Features
Free
Professional
Enterprise
No. of designs
3
20
Customized
Drawing generation
PDF export

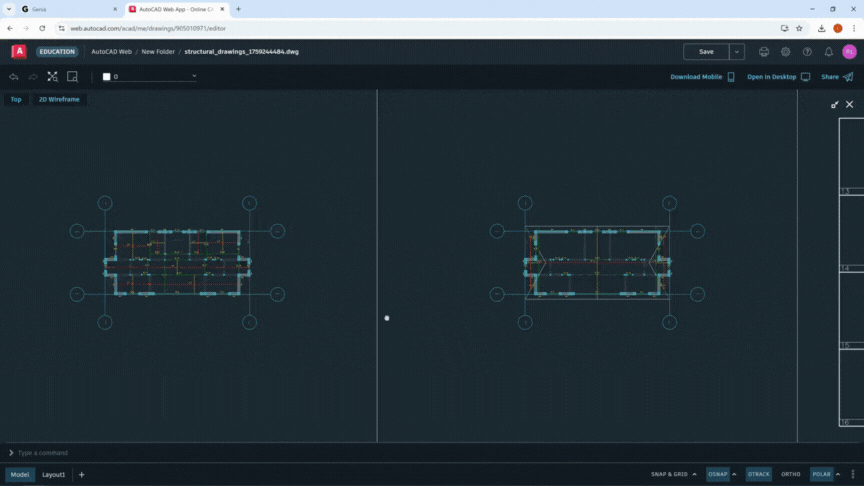

CAD & BIM export
-
Calculation sheets
Limited
Collaborative design editing
-
Cost
Free
$3,999/month
Customized
Get Started
FAQ
How does Structural CoPilot work?
Genia’s Structural CoPilot takes architectural floor plan as inputs and generates structural design as output. Once it receives an architectural drawing, it first feeds the architecture into a Generative AI network to explore 1,000s layout options. For each generated option, Structural CoPilot evaluates it against physical stability, costs, ease of construction and sustainability.
What file formats does Genia support?
For input and output, Genia supports PDF and CAD (.dwg, .dxf) files at the moment. We will support 3D BIM files in first half 2025.
What kinds of properties does Genia support?
At the moment, we support low-rise and mid-rise lightframe timber structures. We are on path to roll out support for steel frames in our upcoming release.
Can Genia’s Structural CoPilot generate multiple design options?
Yes. Among the 1,000s design options generated by AI, Structural CoPilot presents to users the most balanced design, along with the optimal designs along each dimension of physical stability, costs and sustainability. Structural Engineers will be able to explore design flexibility with these options.
How does Genia ensure physical stability of the generated design?
Genia’s Structural CoPilot encompasses a structural analysis engine that runs both analytical assessments as well as finite element analysis. As part of the structural analysis, it takes into consideration of local building codes, as well as availabilities of materials nearby the property location to ensure compliance and feasibility. The structural analysis results will be printed out as calculation sheets to allow structural engineers to examine the physics simulation step by step.
Are the generated designs physically valid and compliant to building codes?
Yes. Structural CoPilot integrates building codes including IRC, IBC and NBCC and automatically fetches the most relevant requirements based on the location of the property. These requirements will be plugged into the structural analysis engine to make sure all designs presented to structural engineers are compliant to local building codes.
Can user modify the generated design?
By the year end of 2024, we will support design editing to allow engineers to directly modify design assumptions and the AI-produced structural layouts. These human editing cues will also help AI improve the quality of generated designs in the future.
Try AI-Assisted Structural Design Now
Get Rid of Repetitive Manual Burdens
©2024 Genia Engineering, Inc. All rights reserved.
